Product features

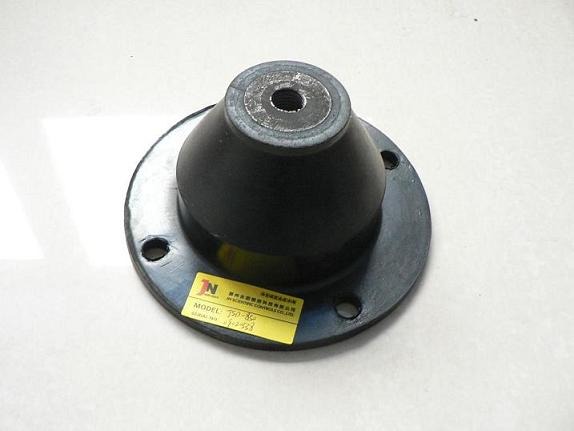

JSD type low frequency rubber vibration isolator iso-frequency is good, when greater than the rated load, the vibration isolator's intrinsic frequency remains unchanged; damping ratio is large, the inhibition of resonance peaks is strong; the structure is simple, easy to install, it can be installed directly under the seat, also can be used to fix the installation of foundation bolts, the use of safe and reliable. Fourteen kinds of specifications, six kinds of external dimensions, load range of 30N ~ 25000N, oil, seawater, salt, fog and sunshine, etc., applicable to a 25 ~ +117 ℃ temperature range. The load range is 50% above and below the rated load.

Ordering instructions

1, the customer has special requirements for the product, must provide the following instructions in the ordering contract:

(1) Structure length

(2) Connection form

(3) Nominal diameter, full diameter, reduction, pipe size

(4) The use of media and temperature, pressure range

(5) experiments, inspection standards and other requirements of the factory can be customized according to customer special requirements configuration and design of special products.

2、The factory can customize and design special products according to the special requirements of customers.

3、If the product type and model are provided by the customer, the customer should correctly explain the meaning and requirements of the model, and sign the contract under the condition that the supply and demand sides understand each other.
